12 Database Web Services

How to Use JPublisher for Web Services Call-Ins

You can use JPublisher to generate Java wrappers that correspond to Database operations and deploy the wrappers as Web services in Oracle Application Server.

Figure 12-1 illustrates how you use JPublisher to publish PL/SQL packages, SQL objects, collections, and packages as Java classes. Once published, these classes can be accessed by any Web service through a WebLogic Server (WLS) Web services servlet.

Figure 12-1 Web Services Call-In to the Database

Features of Oracle Database as a Web Service Provider

Using Oracle Database as a Web service provider offers the following features:

• Enhances PL/SQL Web services

  Improves PL/SQL Web services by extending the Web services support for additional PL/SQL types, including CLOB, BLOB, XMLTYPE, REF CURSOR, and PL/SQL records and tables. This enables you to use most of your existing PL/SQL packages as Web services.

• Exposes Java in the database as Web services

  Exposes existing Java classes deployed in Oracle Database as Web services. Java classes implementing data-related services can be migrated between the middle tier and the database. Java portability results in database independence.

• Provides SQL query Web services

  Leverages warehousing or business intelligence queries, data monitoring queries, and any predefined SQL statements as Web services.

• Enables DML Web services

  Offers secure, persistent, transactional, and scalable logging, auditing, and tracking operations implemented through SQL DML, as Web services. DML Web services are implemented as atomic or group, or batch, INSERT, UPDATE, and DELETE operations.

JPublisher Support for Web Services Call-Ins to Oracle Database

The following JPublisher features support Web services call-ins to the code running in Oracle Database:

• Generation of Java interfaces

• JPublisher styles and style files

• REF CURSOR returning and result set mapping

• Options to filter what JPublisher publishes

• Support for calling Java classes in the database without PL/SQL call specifications

• Support for publishing SQL queries or DML statements

• Support for unique method names

• Support for Oracle Streams AQ

How to Use Oracle Database for Web Services Call-Outs

The Web services client code is written in SQL, PL/SQL, or Java to run inside Oracle Database, which then calls the external Web service. You can call a Web service from a Java client within the database, using one of the following methods:

• SQL and PL/SQL call specifications

  Start a Web service through a user-defined function call, which is generated through JPublisher, either directly within a SQL statement or view or through a variable.

• Pure Java static proxy class

  Use JPublisher to generate a client proxy class, which uses Java API for XML-based remote procedure call (JAX-RPC). This method simplifies the Web service invocation because the location of the service is already known without needing to look up the service in the UDDI registry. The client proxy class does all the work required to construct the SOAP request, including marshalling and unmarshalling parameters.

• Pure Java using dynamic invocation interface (DII) over JAX-RPC

  Dynamic invocation provides the ability to construct the SOAP request and access the service without the client proxy.

For Web services call-outs using PL/SQL, use the UTL_DBWS PL/SQL package. This package essentially uses the same application programming interfaces (APIs) as the DII classes.

You can use a Web services data source to process the results from any Web service request.

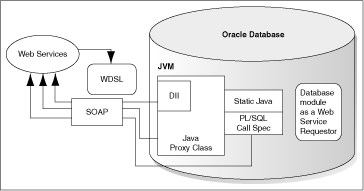

Figure 12-2 illustrates how you can call a Web service from a Java client within the database.

Figure 12-2 Calling Web Services From Within the Database

Description of "Figure 12-2 Calling Web Services From Within the Database"

Web Service Data Sources (Virtual Table Support)

To access data that is returned from single or multiple Web service invocations, create a virtual table using a Web service data source. This table lets you query a set of returned rows as though it were a table.

The client calls a Web service and the results are stored in a virtual table in the database. You can pass result sets from function to function. This enables you to set up a sequence of transformation without a table holding intermediate results. To reduce memory usage, you can return the result set rows, a few at a time, within a function.

By using Web services with the table function, you can manipulate a range of input values from single or multiple Web services as a real table. In the following example, the inner SELECT statement creates rows whose columns are used as arguments for calling the CALL_WS Web service call-out.

SELECT column1, cloumn2, ...
FROM TABLE(WS_TABFUN(CURSOR(SELECT s FROM table_name)))
WHERE ...

The table expression in the preceding example can be used in other SQL queries, for constructing views, and so on.

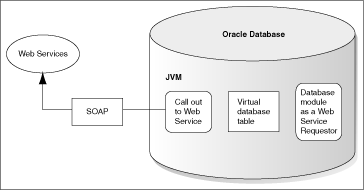

Figure 12-3 illustrates the support for virtual table.

Figure 12-3 Storing Results from Request in a Virtual Table

Description of "Figure 12-3 Storing Results from Request in a Virtual Table"

Features of Oracle Database as a Web Service Consumer

Using Oracle Database as a Web service consumer provides the following features:

• Consuming Web services from Java

  Provides an easy-to-use interface for Web services call-outs, thereby insulating developers from low-level SOAP programming. Java classes running in the database can directly call external Web services by using the previously loaded Java proxy class or through dynamic invocation.

• Consuming Web services from SQL and PL/SQL

  Enables any SQL-enabled tool or application to transparently and easily consume dynamic data from external Web services. After exposing Web services methods as Java stored procedures, a PL/SQL wrapper on top of a Java stored procedure hides all Java and SOAP programming details from the SQL client.

• Using Web services data source

  Enables application and data integration by turning external Web service into a SQL data source, making the external Web service appear as regular SQL table. This table function represents the output of calling external Web services and can be used in a SQL query.

Overview of JPublisher Generation

JPublisher can receive the WSDL file from a Web service and create the static Java, proxy class, or PL/SQL call specification.

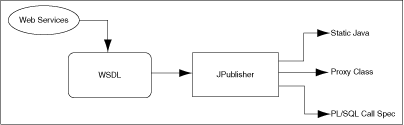

Figure 12-4 illustrates creating Web Services Call-Out Stubs.

Figure 12-4 Creating Web Services Call-Out Stubs

Description of "Figure 12-4 Creating Web Services Call-Out Stubs"

This support is created through the following JPublisher key options:

• -proxywsdl=url

  Use this option to generate JAX-RPC static client proxies, given the WSDL document at the specified URL. This option generates additional wrapper classes to expose instance methods as static methods and generates PL/SQL wrappers. It performs the following steps:

  1. Generates JAX-RPC client proxy classes.

  2. Generates wrapper classes to publish instance methods as static methods.

  3. Generates PL/SQL wrappers for classes that must be accessible from PL/SQL.

  4. Loads generated code into the database.

  Note:

  The -proxywsdl option uses the -proxyclasses option behind the scenes for steps 2 and 3, and takes the -proxyopts setting as input.

  Once generated, your database client can access the Web service through PL/SQL using the call specifications or through the JAX-RPC client proxy classes. The PL/SQL wrappers use the static methods. A client would not usually access any Web service using the static method directly.

• -httpproxy=proxy_url

  Where WSDL is accessed through a firewall, use this option to specify a proxy URL to use in resolving the URL of the WSDL document.

• -proxyclasses=class_list

  For Web services, this option is used behind the scenes by the -proxywsdl option and is set automatically, as appropriate. In addition, you can use this option directly, for general purposes, any time you want to create PL/SQL wrappers for Java classes with static methods, and optionally to produce wrapper classes to expose instance methods as static methods.

  The -proxyclasses option accepts the -proxyopts setting as input.

• -proxyopts=wrapper_specifications

  This option specifies JPublisher behavior in generating wrapper classes and PL/SQL wrappers, usually, but not necessarily, for Web services. For typical usage of the -proxywsdl option, the -proxyopts default setting is sufficient. In situations where you use the -proxyclasses option directly, you may want to use the special -proxyopts settings.

• -endpoint=Web_services_endpoint

  Use this option in conjunction with the -proxywsdl option to specify the Web services endpoint.

• -sysuser=superuser_name/superuser_password

  Use this option to specify the name and password for the superuser account used to grant permissions for the client proxy classes to access Web services using HTTP.

Adjusting the Mapping of SQL Types

Although Oracle Application Server does not currently support LOB types, XMLTYPE, REF CURSORS, and OUT and IN OUT arguments, you can use an alternative approach to expose PL/SQL methods and SQL types as Web services.

You can change the default action of JPublisher to generate code that uses a user-provided subclass. For example, if you have a PL/SQL method that returns a REF CURSOR, then JPublisher automatically maps the return type to java.sql.ResultSet. However, this ResultSet type cannot be published as a Web service. To solve this, create a new method that can return the result set in a Web service-supported format, as follows:

public String [] readRefCursorArray(String arg1, Integer arg2)
{
  java.sql.ResultSet rs = getRefCursor(arg1,arg2);
  ...
  //create a String[] from rs and return it
  ...
}

After creating a method, create an interface that contains the exact methods to publish. You can use JPublisher to easily accomplish this mapping by using the following command:

jpub -sql=MYAPP:MyAppBase:MyApp#MyAppInterf...

In the preceding command:

• MyApp contains the method to return the result set.

• MyAppInterf is the interface that contains the method to publish.

After translating the code for your application, archive all the class files into a single Java Archive (JAR) file and use the Web Services Assembler to create a deployable Web service Enterprise Archive (EAR) file.
