7 Dependency and Change Management

About the Security Service

Only users with administrative privileges can access the Security Service and change security policy in OWB.

When you install OWB and then use the Repository Assistant to create a design repository, OWB assigns the design repository owner you define to be the default administrator. The first time you start the Design Center after installation, you must log in as the design repository owner. You can then define additional administrators or other users as necessary.

Log in to the OWB Design Center as the design repository owner and OWB displays the Globals Navigator.

Under the security node, there are two predefined roles, ADMINISTRATOR and EVERYONE. The one predefined user is the design repository owner, REPOS_OWNER in this example, which is assigned the ADMINISTRATOR role by default.

To perform actions under the Security node, select an object and right-click to view all of the possible operations. Or select an object and select Edit from the menu bar.

About Managing Snapshots

You can manage your snapshots from the Metadata Change Management window in the Design Center. To open this window, select Change Manager from the Tools menu.

The Metadata Change Management window contains a menu bar and a toolbar. You can start most tasks in several different ways, either by using the menus, clicking the tools, or right-clicking a snapshot or a component.

The Metadata Dependency Manager Menus and Commands

The Metadata Dependency Manager is a graphical interface that represents the dependencies between objects. Knowing that an object has dependencies with another object helps identify potential impacts when things change.

The Metadata Dependency Manager has the following components:

• Menu Bar

• Analysis

• Edit

• View

• Window

• Toolbars

• DM Tree

• Property Inspector

• Canvas

Menu Bar

The Metadata Dependency Manager menu bar provides commands for performing various tasks. Some of these commands are also available on the toolbars.

Analysis

The Analysis menu contains the following commands:

• Close: Closes the Dependency Manager.

• Export Diagram: Exports the active diagram to the local file system as an SVG or JPEG file.

• Print Options: Provides Print Setup, Preview, and Print options for printing the diagram.

Edit

The Edit menu contains the following commands:

• Open Editor: Opens the Editor for the currently selected object.

• Hide: Removes the selected objects from the canvas. Use the Refresh command on the View menu to restore the hidden objects.

• Select All: Selects all objects displayed on the canvas.

• Propagate Changes: Displays the Propagate Changes dialog box for a selected attribute. Use it to change the value of an attribute and to propagate that change to all objects downstream. For example, you can select a column in a table object and change its metadata such as its name or data type.

• Group Selected Objects: Creates a group containing the selected objects on the canvas. A folder icon represents all objects in the group. Double-click the icon to display the individual objects in the group. Grouping enables you to reduce clutter on the canvas when there are many objects.

• Ungroup Selected Objects: Eliminates the selected group so that all objects are represented individually.

• Group By Module: Automatically groups all objects by module. A folder icon represents the module and all objects in the module. Double-click the icon to display the individual objects in the group.

• Ungroup Modules: Eliminates the module groups so that all objects are represented individually.

View

The View menu contains the following commands:

• Toolbars: Displays or hides the Graphic tools or the Edit tools.

• Mode: Sets the pointer for one of these actions:

  • Select: Selects one or more objects on the canvas.

  • Pan: Moves the entire diagram on the canvas.

  • Interactive Zoom: Expands the diagram as you move the pointer down, or shrinks the diagram as you move the pointer up.

  • Navigate Edge: Selects the next object in the flow.

• Zoom: Displays a list of percentages that expand or shrink the diagram.

• Fit in Window: Automatically chooses a size for the diagram so that it fits on the canvas.

• Auto Layout: Organizes the objects and displays the diagram at its default size.

• Center: Centers the diagram on the canvas.

• Show Full Impact: Generates the full impact diagram of the selected object.

• Show Full Lineage: Generates the full lineage diagram of the selected object.

• Show Lineage: Displays the next level of objects in the lineage diagram of the selected object.

• Hide Lineage: Hides the lineage of the selected object.

• Show Impact: Displays the next level of objects in the impact diagram of the selected object.

• Hide Impact: Hides the impact of the selected object.

• Expand: Expands the selected icon in the diagram. The expanded icon shows the details of the object, such as the columns in a table or the attributes in a dimension.

• Expand All: Expands all the object icons in the diagram.

• Collapse: Collapses the expanded icon for a selected object.

• Collapse All: Collapses all the expanded icons on the canvas.

• Refresh: Refreshes the Dependency Manager diagram to reflect recent changes in the workspace.

Window

The Metadata Dependency Manager Window menu contains commands for toggling between displaying and hiding the following windows:

• Property Inspector

• Bird's Eye View

• Tree View

Toolbars

The Metadata Dependency Manager provides two toolbars as shortcuts to frequently used commands:

• Graphic toolbar: Provides icons for commands on the View menu. Refer to "View" for descriptions of these commands.

• Edit toolbar: Provides icons for commands on the Edit menu. Refer to "Edit" for descriptions of these commands.

Bird's Eye View

Use the Bird's Eye View to quickly change the portion of the diagram currently displayed on the canvas. This view displays a miniature version of the diagram on the canvas, with a scrollable box that represents the dimensions of the canvas. Drag the box to the area of the diagram currently of interest to you.

DM Tree

Use the DM Tree to change the content of the canvas. The DM Tree has these tabs:

• DM Context Tree: Lists objects in the current project. Right-click an object, and use the menu to generate a new diagram or to add the object to the current diagram. You can also drag-and-drop an object onto the current diagram.

• DM Graph Tree: Lists the current diagrams. You can close a diagram on the canvas, then use this list to redisplay the diagram without regenerating it.

Property Inspector

Use the Property Inspector to view an object's properties.

To change the current object in the Property Inspector, right-click the object on the canvas and select Update Property Inspector.

For a description of a property, select the property in the Inspector. The description appears at the bottom of the window.

Canvas

Use the canvas to display one or more lineage and impact diagrams. Each diagram is displayed on a separate tab.

You can use these techniques to create and manipulate diagrams on the canvas:

• To open a new diagram, right-click an object in the DM Context Tree and select Show Lineage or Show Impact.

• To close a diagram, click the X on the tab. You can redisplay the diagram from the DM Graph Tree until you close the Metadata Management window.

• To add an object to the canvas, drag-and-drop it from the DM Context Tree.

• To display more of the lineage of an object, click the plus sign (+) to the left of its icon. To hide the lineage, click the minus sign (-) to the left.

• To display more of the impact of an object, click the plus sign (+) to the right of its icon. To hide the impact, click the minus sign (-) to the right.

• To display the details of an object, double-click it. You can then select an individual property and edit it by choosing Propagate Changes from the Edit menu.

• To edit an object, right-click its icon and select Open Editor.

Lineage and Impact Analysis Diagrams

Lineage and Impact Analysis (LIA) diagrams show the relationships among objects managed by OWB. These relationships are constructed by mappings and structural relationships (for example, a primary key and foreign key relationship). The lineage diagram for a particular object shows its source objects, and the impact diagram shows its targets.

Lineage and impact are mirror images of each other. If Object A is part of the lineage diagram of Object B, then Object B is part of the impact diagram of Object A. When you read a diagram from left to right, you are seeing impact. When you read it from right to left, you are seeing lineage.

For example, you might have a mapping that extracts data from a file and loads it into a table by way of an external table. This is the relationship:

flat_file > external_table > table

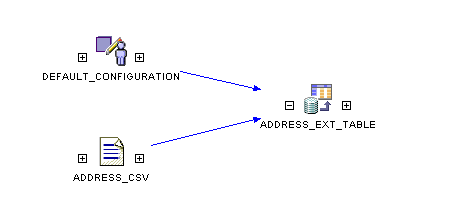

Figure 7-1 shows a lineage diagram of an external table named ADDRESS_EXT_TABLE. ADDRESS_CSV is a flat file, and it is part of the lineage of ADDRESS_EXT_TABLE. Thus, any change to ADDRESS_CSV will impact ADDRESS_EXT_TABLE.

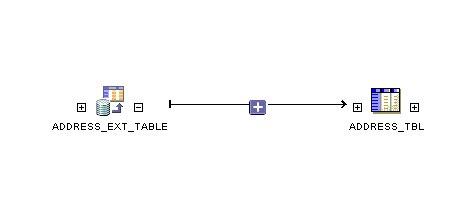

Figure 7-2 shows an impact diagram of ADDRESS_EXT_TABLE, which includes the ADDRESS_TBL. Any change to ADDRESS_EXT_TABLE will impact ADDRESS_TBL. ADDRESS_EXT_TABLE is part of the lineage of ADDRESS_TBL.

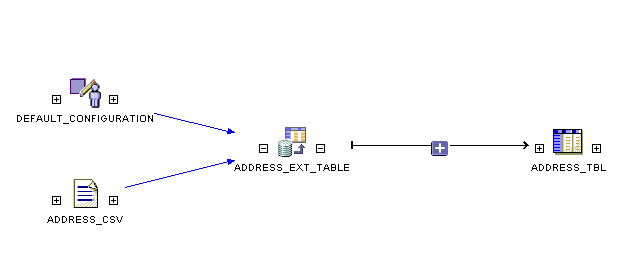

You can see both the lineage and the impact of an object by clicking the plus signs (+) on either side of the object icon, as shown in Figure 7-3.
