An Oracle Data Guard configuration can consist of any combination of single-instance and Oracle Real Application Clusters (RAC) multiple-instance databases. This chapter summarizes the configuration requirements and considerations that apply when using Oracle Data Guard with Oracle RAC databases. It contains the following sections:
You can configure a standby database to protect a primary database using Oracle RAC. The following table describes the possible combinations of instances in the primary and standby databases:
| Instance Combinations | Single-Instance Standby Database | Multi-Instance Standby Database |
|---|---|---|
| Single-instance primary database | Yes | Yes |
| Multi-instance primary database | Yes | Yes |
In each scenario, each instance of the primary database transmits its redo data to an instance of the standby database.

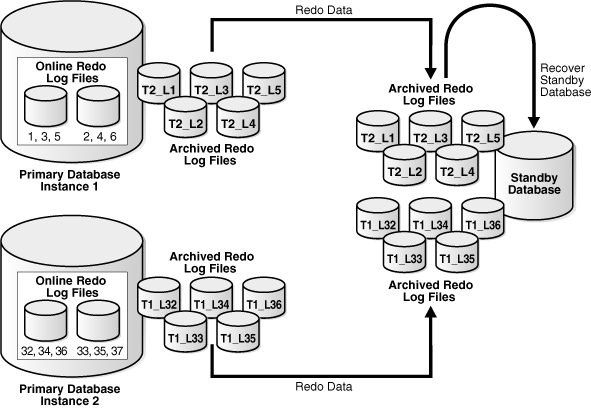

Figure D-1 illustrates an Oracle RAC database with two primary database instances (a multi-instance primary database) transmitting redo data to a single-instance standby database.
Figure D-1 Transmitting Redo Data from a Multi-Instance Primary Database
In this case, Instance 1 of the primary database archives redo data to local archived redo log files 1, 2, 3, 4, 5 and transmits the redo data to the standby database destination, while Instance 2 archives redo data to local archived redo log files 32, 33, 34, 35, 36 and transmits the redo data to the same standby database destination. The standby database automatically determines the correct order in which to apply the archived redo log files.
To set up a primary database in an Oracle RAC environment
Follow the instructions in Chapter 3 (for physical standby database creation) or Chapter 4 (for logical standby database creation) to configure each primary instance.
To set up a single instance standby database
Follow the instructions in Chapter 3 (for physical standby database creation) or Chapter 4 (for logical standby database creation) to define the LOG_ARCHIVE_DEST_n and LOG_ARCHIVE_FORMAT parameters to specify the location of the archived redo log files and standby redo log files.
This section describes how to configure an Oracle RAC primary database to send redo data to an Oracle RAC standby database.
Perform the following steps to configure an Oracle RAC standby database to receive redo data from a primary database:
Create a standby redo log on the standby database. The redo log files in the standby redo log must reside in a location that can be accessed by all of the standby database instances, such as on a cluster file system or ASM instance. See Section 6.2.3.1 for more information about creating a standby redo log.
Configure standby redo log archival on each standby database instance. The standby redo log must be archived to a location that can be accessed by all of the standby database instances, and every standby database instance must be configured to archive the standby redo log to the same location. See Section 6.2.3.2 for more information about configuring standby redo log archival.
Configure each instance of the RAC primary database to send its redo data to the RAC standby database. Section 6.2.2 describes how to configure an Oracle database instance to send redo data to another database.
Oracle recommends the following best practices when configuring an Oracle RAC primary database to send redo data to an Oracle RAC standby database:
Use the same LOG_ARCHIVE_DEST_n parameter on each primary database instance to send redo data to a given standby database.
Set the SERVICE attribute of each LOG_ARCHIVE_DEST_n parameter that corresponds to a given standby database to the same net service name.
The net service name should resolve to an Oracle Net connect descriptor that contains an address list, and that address list should contain connection data for each standby database instance.
This section contains the Data Guard configuration information that is specific to Oracle RAC environments. It contains the following topics:
The format for archived redo log filenames is in the form of log_%parameter, where %parameter can include one or more of the parameters in Table D-1.
Table D-1 Directives for the LOG_ARCHIVE_FORMAT Initialization Parameter
| Directives | Description |
|---|---|
|
|
Database activation ID. |
|
|
Database activation ID, zero filled. |
|
|
Database ID. |
|
|
Database ID, zero filled. |
|
|
Instance thread number. |
|
|
Instance thread number, zero filled. |
|
|
Log file sequence number. |
|
|
Log file sequence number, zero filled. |
|
|
Resetlogs ID. |
|
|
Resetlogs ID, zero filled. |
For example:
LOG_ARCHIVE_FORMAT = log%d_%t_%s_%r.arc
The thread parameters %t or %T are mandatory for Oracle RAC to uniquely identify the archived redo log files with the LOG_ARCHIVE_FORMAT parameter.
In an Oracle RAC configuration when running in either maximum protection or maximum availability mode, any instance that loses connectivity with a standby destination will cause all other instances to stop sending data to that destination (this maintains the integrity of the data that has been transmitted to that destination).
When the failed standby destination comes back up, Data Guard runs the site in resynchronization mode until no gaps remain. Then, the standby destination can participate in the Data Guard configuration again.
The following list describes the behavior of the protection modes in Oracle RAC environments:
Maximum protection configuration
If a lost destination is the last participating SYNC destination, the instance loses connectivity and will be shut down. Other instances in an Oracle RAC configuration that still have connectivity to the standby destinations will recover the lost instance and continue sending to their standby destinations. Only when every instance in an Oracle RAC configuration loses connectivity to the last standby destination will the primary database be shut down.
This section contains information about switchovers.
For an Oracle RAC database, only one primary instance can be active during a switchover when the target database is a physical standby. Therefore, before a switchover to a physical standby database, shut down all but one primary instance. After the switchover completes, restart the instances that were shut down during the switchover. This limitation does not exist when performing a switchover to a logical standby database.
Note:
The SQL
ALTER DATABASE statement used to perform the switchover automatically creates redo log files if they do not already exist. Because this can significantly increase the time required to complete the COMMIT operation, Oracle recommends that you manually add redo log files when creating physical standby databases.This section provides help troubleshooting problems with Oracle RAC.
When your database is using Oracle RAC, active instances prevent a switchover from being performed. When other instances are active, an attempt to switch over fails with the following error message:
SQL> ALTER DATABASE COMMIT TO SWITCHOVER TO STANDBY; ALTER DATABASE COMMIT TO SWITCHOVER TO STANDBY * ORA-01105: mount is incompatible with mounts by other instances
Action: Query the GV$INSTANCE view as follows to determine which instances are causing the problem:
SQL> SELECT INSTANCE_NAME, HOST_NAME FROM GV$INSTANCE - > WHERE INST_ID <> (SELECT INSTANCE_NUMBER FROM V$INSTANCE); INSTANCE_NAME HOST_NAME ------------- --------- INST2 standby2
In the previous example, the identified instance must be manually shut down before the switchover can proceed. You can connect to the identified instance from your instance and issue the SHUTDOWN statement remotely, for example:
SQL> CONNECT SYS@standby2 AS SYSDBA Enter Password: SQL> SHUTDOWN; SQL> EXIT
|
