9 Administering Oracle ASM with Oracle Enterprise Manager

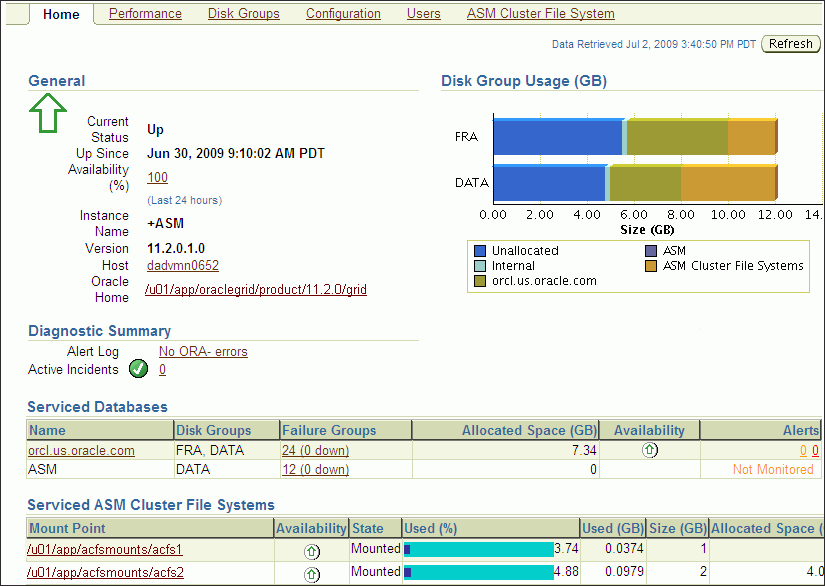

Accessing the Oracle ASM Home Page in Single-Instance Oracle Databases

To access the Oracle Automatic Storage Management Home page on a single-instance system:

1. Access the Database Home page by logging in as any database user.

   See Also:

   Oracle Database 2 Day DBA for more information

2. Under the heading labeled General on the left side of the Database Instance Home page as shown in Figure 9-1, click the link next to the last entry in the General column labeled Oracle ASM.

3. If prompted for Oracle ASM login credentials, then enter the user SYS, provide the SYS password that was set for the Oracle ASM instance upon installation, and connect as SYSASM. Oracle Enterprise Manager displays the Oracle Automatic Storage Management Home page similar to the page in Figure 9-1.

   See Also:

   "Authentication for Accessing Oracle ASM Instances" for more information about authentication

Accessing the Oracle ASM Home Page in Oracle RAC Databases

To access the Oracle Automatic Storage Management Home page in an Oracle Real Application Clusters (RAC) environment:

1. Log in to Oracle Enterprise Manager Database Control on any node that is running the Oracle Management Service (OMS).

   OMS is automatically started on the node on which Database Configuration Assistant (DBCA) was originally run to create the cluster database. Depending on your configuration, OMS might also be running on other nodes.

   See Also:

   Oracle Database 2 Day + Real Application Clusters Guide for more information

2. On the Cluster Database page, under the Instances heading, click a link to access an Oracle ASM instance.

Bringing Disks Online and Offline

Perform the following procedures to bring a disk online or offline:

1. Access the Oracle Automatic Storage Management Home page.

   See "Oracle Automatic Storage Management Home Page" for instructions.

2. Click the Disk Groups link at the top of the page to view the Disk Groups page. Oracle Enterprise Manager displays a page similar to the one show in Figure 9-3.

   Figure 9-3 Oracle Automatic Storage Management Disk Groups List Page


   Description of "Figure 9-3 Oracle Automatic Storage Management Disk Groups List Page"



3. Click the name of a disk in the Name column and Oracle Enterprise Manager displays the General page for the disk group to modify. The General page that you see should be similar to the one shown in Figure 9-4.

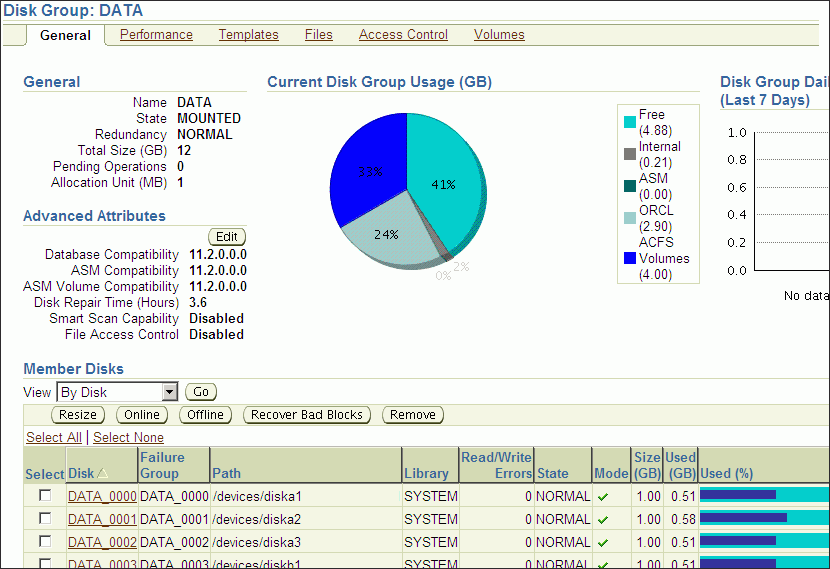

   Figure 9-4 Oracle Automatic Storage Management Disk Group General Page


   Description of "Figure 9-4 Oracle Automatic Storage Management Disk Group General Page"



4. To bring a disk online, select the disk to bring online and click Online. If you bring a disk online, then Oracle ASM performs the following:

   • Oracle ASM performs the online operation on the selected disks. You can select one or more or disks, or all of the disks to bring online. If you select all of the disks, then Oracle uses the ALL keyword for this operation. Otherwise, only the selected disks are affected by the online operation.

   • During the online process, Oracle Enterprise Manager first places a disk into online mode to accommodate write operations. Then Oracle Enterprise Manager resynchronizes stale data on the disk with the current data until the disk is fully online for read operations; this is the Oracle ASM fast mirror resync feature.

   • You can also choose the By Failure Group view to perform this operation on a selected disk group. In this case, Oracle uses the SQL for disks in failure group.

   • You can also select a disk that is online, but Oracle Enterprise Manager ignores that selection and only brings disks online that were previously offline.

   • Click Yes on the Oracle Enterprise Manager Confirmation dialog to begin bringing the disk online or click No to cancel the operation. You can also click Show SQL to review the SQL that Oracle Enterprise Manager uses for the online operation.

5. To take a disk offline, select the disk to take offline and click Offline. If you bring a disk offline, then Oracle ASM performs the following:

   • Depending on how much data is stale, the operation may require additional time to complete. You can monitor the operation's progress using the Pending Operations link from the Disk Group Home page.

   • The value that you set for Rebalance Power using ASM_POWER_LIMIT must be a whole number ranging from 0 to 11, inclusively. The text on the page describes how the value of Rebalance Power affects the fast mirror resync operation. If the ASM_POWER_LIMIT is set to 0, then Oracle ASM does not perform automatic rebalance.

   • By default, the Rebalance Power value uses the value of the ASM_POWER_LIMIT initialization parameter.

   • Oracle Enterprise Manager displays an Offline Confirmation page and the text on this page explains that after Oracle Enterprise Manager takes the selected disks offline, the Oracle ASM instance waits for the time interval that is specified by the value that you have set for the DISK_REPAIR_TIME initialization parameter before Oracle ASM drops the disks. During the disk repair time period, you can repair the disks and then place them back online. For each disk that you successfully place online, the pending drop operation is canceled and a resynchronization operation begins.

   • If you have set DISK_REPAIR_TIME to a large value, for example, greater than one day, then this increases the possibility of data loss. This is because the files in the disk group are protected with a lower degree of redundancy during this period.

     Click Yes on the Oracle Enterprise Manager Conformation dialog to begin the offline processing or click No to stop the operation. You can also click Show SQL to see the SQL that Oracle Enterprise Manager uses for the offline operation.

Creating Disk Groups

You can create additional Oracle ASM disk groups to:

• Have disk groups with different redundancy levels (normal, high, or external), depending on availability requirements and storage system capabilities.

• Separate different classes of storage, such as SCSI drives and SATA drives, into different disk groups. Disks in a disk group should have similar size and performance characteristics.

• Store the fast recovery area in a separate disk group from the database.

To create a disk group:

1. Access the Oracle Automatic Storage Management Home page.

   See "Oracle Automatic Storage Management Home Page" for instructions.

2. Click the Disk Groups link at the top of the page to display the Disk Groups property page.

3. If you are not logged in, then the Log In page appears and you should log in as the SYS user, connecting as SYSASM. Provide the SYS password for the Oracle ASM instance. This password was set up when the Oracle ASM instance was created.

4. Click Create and Oracle Enterprise Manager displays a Create Disk Group page similar to the page in Figure 9-6. The Create Disk Group page displays a list of Oracle ASM disks that are available to be added to a disk group. This includes disks with a header status of CANDIDATE, PROVISIONED, or FORMER, and so on.

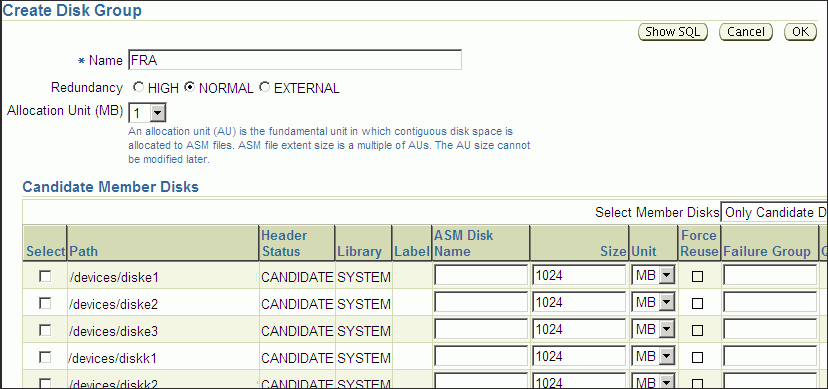

   Figure 9-6 Oracle Automatic Storage Management Create Disk Group Page


   Description of "Figure 9-6 Oracle Automatic Storage Management Create Disk Group Page"



5. To display not only disks that are available to be added to a disk group, but all Oracle ASM disks, including disks that belong to a disk group (header status = MEMBER), then select All Disks from the Select Member Disks list.

   The page is re-displayed with the complete list of Oracle ASM disks that were discovered by the Oracle ASM instance.

6. Enter the disk name, select a redundancy type (high, normal, or external), and optionally, you can enter a failure group name.

7. Select disks as follows:

   • Select the box to the left of each disk to be included in the new disk group.

   • Optionally, you can enter a disk name, the size of the disk for Oracle ASM to use, and the failure group name.

   • To force the inclusion of a disk in the disk group, select the Force Usage box for that disk.

     Caution:

     The Force Usage box causes the disk to be added to the new disk group even if the disk belongs to another disk group and has valid database data. This data will be lost. You must be certain that you are selecting a disk that can legitimately be added to the disk group. See "Creating Disk Groups" for a discussion of the FORCE option.

8. Specify a Disk Compatibility value for the disk group to enable your system to use the latest Oracle ASM features. See "Configuring Disk Group Compatibility Attributes".

   Note:

   You cannot reverse setting a disk compatibility value.

   For information about disk group compatibility attributes, see "Disk Group Compatibility".

9. Click OK to create the disk group or click Cancel to stop the disk group creation operation. You can also click Show SQL to show the SQL statements that the disk group creation operation uses.

   See Also:

   See "Creating Disk Groups" for more information about creating disk groups the Oracle Database Reference description of the V$ASM_DISK view for information about the various header statuses of Oracle ASM disks

Adding Disks to Disk Groups

You can add disks to a disk group to increase the total amount of storage space in a disk group. If you add multiple disks in a single operation, then Oracle ASM rebalances the disk group to evenly distribute the data on all disks, including the newly added disks.

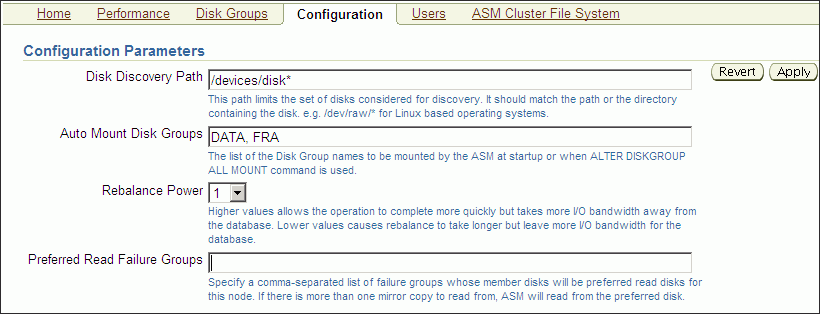

You can control the power of a rebalance operation, which is a number from 0 to 11. The higher the number, the faster the rebalance operation completes. Lower numbers cause rebalancing to take longer, but consume fewer processing and I/O resources. This leaves these resources available for the database. The default value of 1 minimizes disruption to the database.

A value of 0 blocks the rebalance operation. Manual or automatic rebalance can then occur at a later time. You might want to postpone rebalancing to wait for a time when there are fewer demands on the database, or when you have completed all of your disk group changes.

To add one or more disks to a disk group:

1. Access the Oracle Automatic Storage Management Home page.

   See Also:

   "Oracle Automatic Storage Management Home Page" for instructions

2. Click the Disk Groups link to display the Disk Groups property page.

3. If the Oracle ASM Login page appears, then log in as the SYS user, connecting as SYSASM. Provide the SYS password for the Oracle ASM instance. This password was set up when the Oracle ASM instance was created.

4. Click a link in the Name column to select the disk group to which you want to add disks. The Disk Group page similar to the page in Figure 9-4 appears, displaying a list of disks that are in the disk group.

5. Click Add and Oracle Enterprise Manager displays the Add Disks page. This page displays a list of Oracle ASM disks that are available to be added to the disk group. This includes disks with the header status of CANDIDATE, PROVISIONED, or FORMER, and so on.

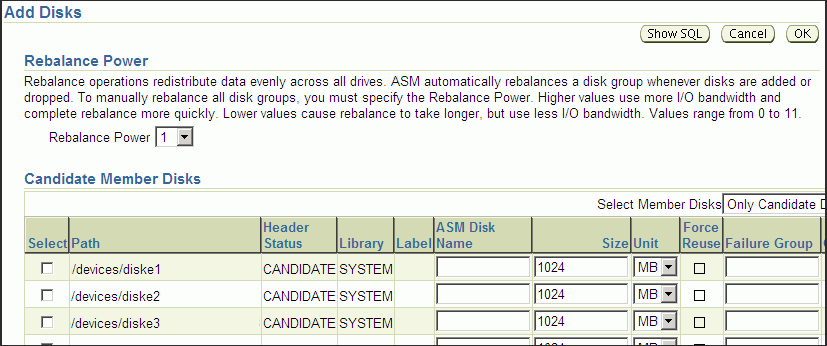

   Figure 9-7 Oracle Automatic Storage Management Add Disks Page


   Description of "Figure 9-7 Oracle Automatic Storage Management Add Disks Page"



6. To display not only disks that are available to be added to a disk group, but all of the Oracle ASM disks, including disks that belong to a disk group (header status = MEMBER), select All Disks from the Select Member Disks drop-down list on the right hand side of the page. Oracle Enterprise Manager re-displays the page with the complete list of Oracle ASM disks that were discovered by the Oracle ASM instance.

7. Optionally change the rebalance power by selecting a value from the Rebalance Power list.

8. Select disks as follows:

   • Check the box to the left of each disk to be added to the disk group.

   • To force the inclusion of a disk in the disk group, select the Force Reuse box in the right-most column.

     Caution:

     The Force Reuse box causes the disk to be added to the disk group even if the disk belongs to another disk group and has valid database data. This data will be lost. You must be certain that you are selecting a disk that can legitimately be added to the disk group. Refer to "Adding Disks to a Disk Group" for an example of the FORCE option.

   • Optionally enter an Oracle ASM disk name for each disk. Oracle ASM provides a name if you do not.

9. Click OK to add the selected disks.

Dropping Disks from Disk Groups

When you drop a disk from a disk group, Oracle ASM rebalances the disk group by moving all of the file extents from the dropped disk to other disks in the disk group. Oracle ASM then releases the disk and you can then add the disk to another disk group or use it for other purposes. You can drop one or more disks in a single operation. You can also optionally set rebalance power for the drop operation. The following is a list of possible reasons for dropping a disk:

• A disk is starting to fail and you must replace it

• To upgrade a disk

• To reallocate the disk to a different disk group or reallocate the disk to a different storage system

To drop one or more disks from a disk group:

1. Access the Oracle Automatic Storage Management Home page.

   See "Oracle Automatic Storage Management Home Page" for instructions.

2. Click the Disk Groups link to display the Disk Groups property page.

3. If the Oracle Automatic Storage Management Login page appears, log in as the SYS user, connecting as SYSASM. Provide the SYS password for the Oracle ASM instance. This password was set up when the Oracle ASM instance was created.

4. Click a link in the Name column to select the disk group that contains the disks to be dropped.

   The Disk Group page appears.

5. Under the Member Disks heading, in the Select column, select the boxes for the disks that you plan to drop, and then click Remove.

   A confirmation page appears.

6. To change the rebalance power, or to set the FORCE option for dropping disks, do the following:

   1. Click Show Advanced Options.

   2. Optionally select the Force option or select a rebalance power in the Rebalance Power list.

   Note:

   You might need the FORCE option if Oracle ASM cannot read from or write to the disk. See "Dropping Disks from Disk Groups" for a discussion of the FORCE option.

7. Click Yes to drop the disks.

   The Disk Group page returns, and displays a state of DROPPING for each disk being dropped.

8. Refresh the page until the dropped disks no longer appear in the disk group.

Dropping Disk Groups

When you drop a disk group, you delete the disk group and optionally all of its files. You cannot drop a disk group if any of its database files are open. Oracle ASM deletes all of the disk group contents only if you specify the including contents option. After dropping a disk group, you can add its member disks to other disk groups or use them for other purposes.

One reason to drop a disk group is to change the redundancy level (normal, high, or external). Because you cannot change the redundancy of a disk group, you must drop the disk group and then re-create it with the proper redundancy. In this case, you must back up or move disk group data before you drop the disk group.

To drop a disk group:

1. Access the Oracle ASM Home page.

   See Also:

   "Oracle Automatic Storage Management Home Page" for instructions about how to access the Oracle Automatic Storage Management Home page

2. Click the Disk Group tab to display the Disk Groups page.

3. If the Oracle ASM Login page appears, log in as the SYS user, connecting as SYSASM. Provide the SYS password for the Oracle ASM instance. This password was set up when the Oracle ASM instance was created.

4. Click the box in the Select column to select a disk group that you plan to drop.

5. Click Delete and confirmation page appears.

6. To delete the disk group even if it still contains files, click Show Advanced Options and ensure that the Including Contents option is selected. If the disk group contains files and the Including Contents option is not selected, then you cannot drop the disk group.

7. To delete a disk group that belongs to a disk group that you cannot mount, use the FORCE option in the Advanced Options confirmation dialog. The FORCE option applies to the DISMOUNTED disk group only. This option enables you to delete a disk header and mark it as FORMER.

   Caution:

   Use extreme care when using the FORCE option because the Oracle ASM instance does not verify whether the disk group is used by any other Oracle ASM instance before Oracle ASM deletes the disk group.

8. On the confirmation page, click Yes.

   See Also:

   "Dropping Disk Groups" for more information about dropping disks

Monitoring Disk Group Usage

Perform the following procedures to monitor disk group usage:

To view Oracle ASM disk group usage and free space:

1. Access the Oracle Automatic Storage Management Home page.

   See Also:

   "Oracle Automatic Storage Management Home Page" for instructions about how to access the home page

2. Click the Disk Groups link to view the Disk Groups property page.

3. If the Oracle ASM Login page appears, then log in as the SYS user, connecting as SYSASM. Provide the SYS password that was set up for Oracle ASM when the Oracle ASM instance was created.

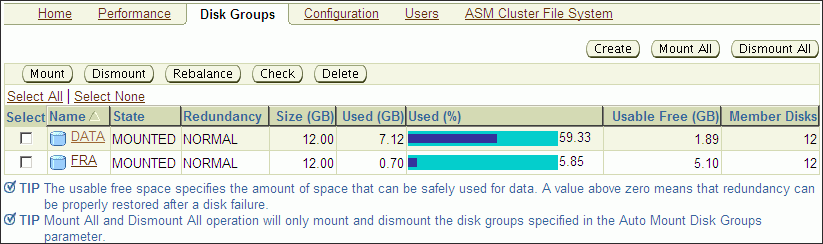

The Disk Group list page, similar to the page shown in Figure 9-3, displays all of the disk groups and their space usage information.

The Usable Free column displays the space in megabytes that is actually available in the disk group. The values in this column consider the redundancy level of the disk group, and exclude the space that the disk group reserves for restoring full redundancy for all files in the disk group after a disk failure.

Mounting and Dismounting Disk Groups

Use the FORCE option to mount a disk group when there are missing disks or missing failure groups. The FORCE option corrects configuration errors, such as incorrect values for ASM_DISKSTRING, without incurring unnecessary rebalance operations. Disk groups mounted with the FORCE option have one or more disks offline if the disks were not available at the time of the mount. You must take corrective action to restore those devices before the time set with the DISK_REPAIR_TIME value expires. Failing to restore and put those disks back online within the disk repair time frame results in Oracle ASM automatically removing the disks from the disk group. This would then require a rebalance operation to restore redundancy for all of the files in the disk group. Perform the following procedures to mount a disk with the FORCE option:

1. From the Oracle ASM home page click the Disk Groups tab.

2. Select the disk group that has a disk that you must repair and click Dismount. Click OK on the Dismount confirmation dialog. The State column of the Disk Group home page should show the Status as DISMOUNTED.

3. Perform any needed repairs to the disk in the disk group.

4. Click the box in the Select column next to the disk that you plan to force mount, then click Mount.

5. On the Disk Mount Confirmation dialog, click the Show Advanced Options link.

6. On the Mount Force Confirmation dialog as shown inFigure 9-8, select the Force option and click Yes. You can also click No to cancel the mount force operation and Show SQL to review the SQL that Oracle Enterprise Manager uses to perform the mount force operation.

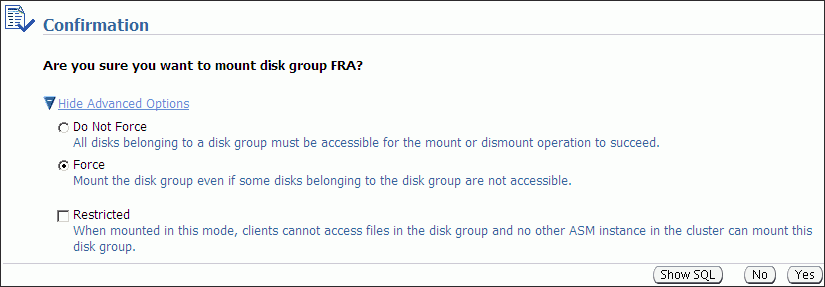

Figure 9-8 Mount Force Confirmation Dialog

Description of "Figure 9-8 Mount Force Confirmation Dialog"

Administering Advanced Disk Group Properties

This section explains how to administer advanced disk group properties.

Perform the following steps to change the values for disk group attributes that can be altered after the disk group has been created.

1. On the Automatic Storage Disk Group List page, click a disk group name and Oracle Enterprise Manager displays the Disk Group Home page.

2. Click Edit under the Advanced Attributes section.

The topics contained in this section are:

• Configuring Disk Group Compatibility Attributes

• Configuring Disk Repair Time

• Configuring Smart Scan Compatibility

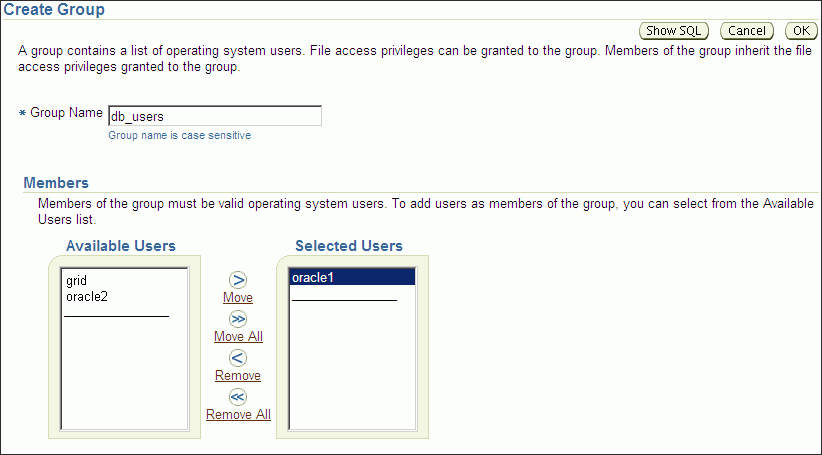

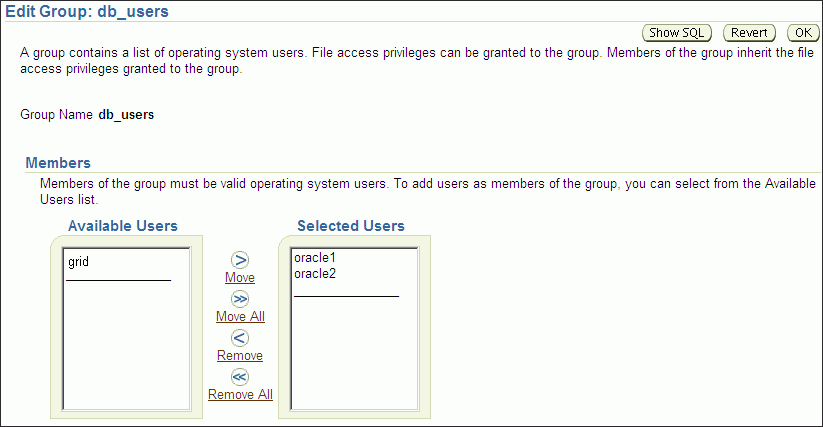

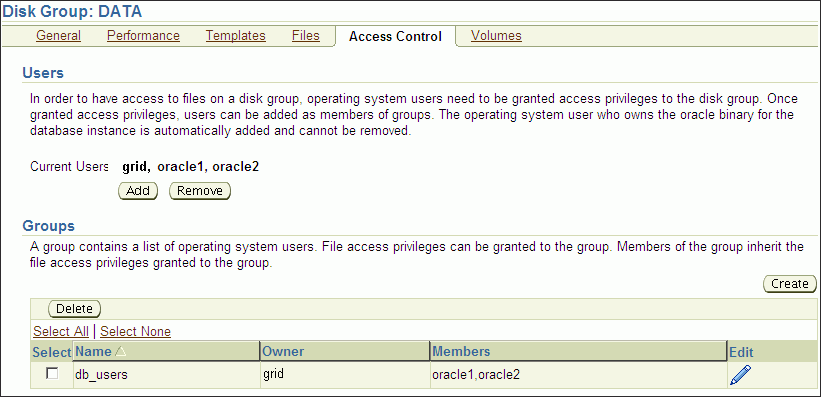

• Configuring File Access Control

Figure 9-9 shows the advanced attributes that can be altered for an existing disk group. This screenshot only shows the top portion of the Edit Advanced Attributes for Disk Group Page.

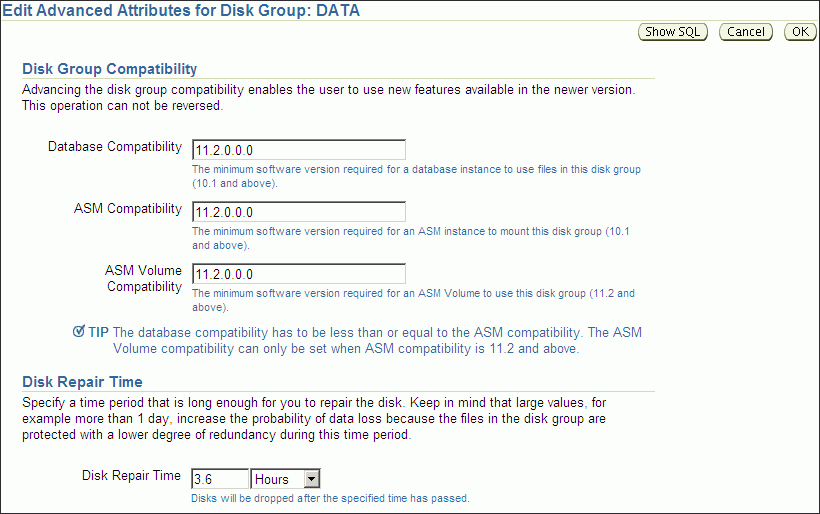

Figure 9-9 Oracle Automatic Storage Management Edit Advanced Attributes for Disk Group Page

Description of "Figure 9-9 Oracle Automatic Storage Management Edit Advanced Attributes for Disk Group Page"

Monitoring General Oracle ASM Performance

You can monitor Oracle ASM performance with the Oracle Enterprise Manager Performance page, shown in Figure 9-15.

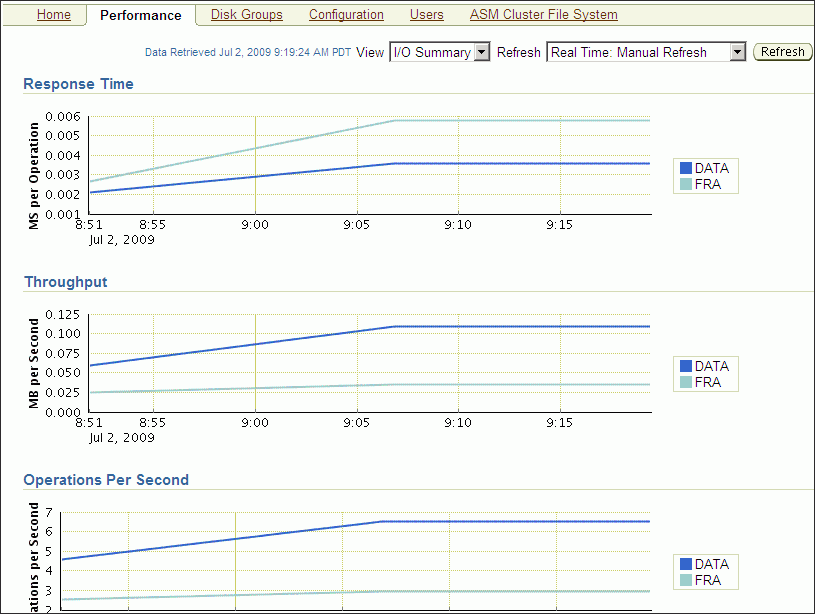

Figure 9-15 Oracle Automatic Storage Management Performance Page

Description of "Figure 9-15 Oracle Automatic Storage Management Performance Page"

To monitor Oracle ASM performance:

1. Access the Oracle Automatic Storage Management Home page.

   See Also:

   "Oracle Automatic Storage Management Home Page" for more information about accessing the home page

2. Click the Performance link to view the Performance property page.

3. Determine the view and refresh rate of the performance graphs with the View and Refresh options. Click Refresh to manually refresh the graphs. The refresh option has the following two intervals:

   • Manual refresh: manual, 15 second interval, 30 second interval

   • Historical data: Last 24 hours, last 7 days, last 31 days

   See Also:

   "Performance and Scalability Considerations for Disk Groups"

Checking Disk Group Integrity

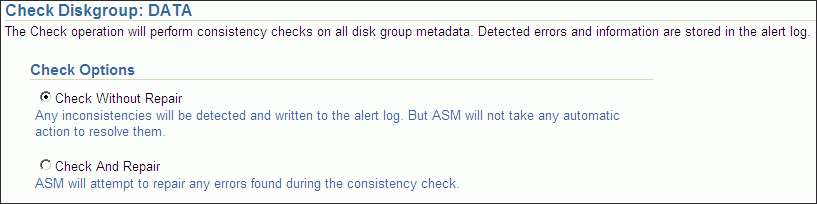

When you check the integrity of Oracle ASM disk groups, Oracle Enterprise Manager performs consistency checks on all of the disk group metadata. If Oracle ASM detects errors, then Oracle ASM stores information about errors in the alert log. To check disk groups, perform the following steps:

1. From the Disk Groups Administration page click Check and Oracle ASM displays a confirmation dialog for the check disk group operation.

   Figure 9-16 Oracle Automatic Storage Management Check Diskgroup Confirmation Dialog


   Description of "Figure 9-16 Oracle Automatic Storage Management Check Diskgroup Confirmation Dialog"



2. Select Check Without Repair to record information about disk group inconsistencies in the alert log. In this operation, Oracle ASM does not resolve the errors. Select Check And Repair to attempt to repair errors that Oracle Enterprise Manager identifies during the disk group consistency check.

3. Click Yes to start the disk group check operation or No to cancel it. You can also select Show SQL to review the SQL statements that the disk group check operation uses. Click OK to run the check operation as a command. To schedule a job, click Schedule Job. Optionally, you can modify or reenter the job name and description. Also provide host credentials and enter the scheduling options by selecting Immediately or Later and modifying the date and time as needed. Click OK to schedule the job or Cancel to terminate the job creation process.
